目录
- 3D变换
- animation
1. 3D变换
常用API：
- transform-style（preserve-3d） 建立3D空间
- Perspective 景深
- Perspective- origin 景深基点
- Transform 新增函数
* rotateX()
* rotateY()
* rotateZ()
* translateZ()
实例：

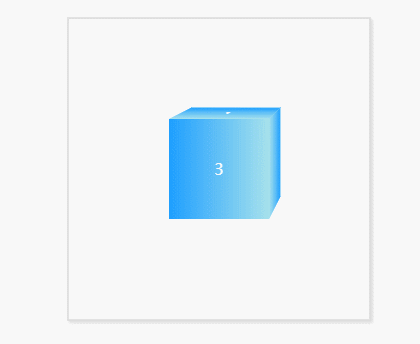

实例1：3D立方体
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>立方体</title>
<style type="text/css">
*{
margin: 0;
padding: 0;
}
.wrap{
width: 100px;
height: 100px;
border: 2px solid #ddd;
box-shadow: 2px 2px 4px #ddd;
position: relative;
margin: 50px auto;
padding: 100px;
-webkit-perspective-origin:right top;
-webkit-perspective:800px;
}
.trangel{
width: 100px;
height: 100px;
background: red;
/* 建立3d舞台 */
-webkit-transform-style: preserve-3d;
transition: 5s all;
}
.trangel div{
width: 100px;
height: 100px;
position: absolute;
text-align: center;
line-height: 100px;
color: #fff;
background: black;
}
.trangel div:nth-of-type(1){
top: -100px;
left: 0px;
background: -webkit-linear-gradient(top, #1E9FFF,#A6E1EC);
-webkit-transform-origin: bottom;
-webkit-transform: rotateX(90deg);
}
.trangel div:nth-of-type(2){
top: 0px;
left: -100px;
background: -webkit-linear-gradient(left, #1E9FFF,#A6E1EC);
-webkit-transform-origin: right;
-webkit-transform: rotateY(-90deg);
}
.trangel div:nth-of-type(3){
top: 0px;
left: 0px;
background:-webkit-linear-gradient(360deg, #1E9FFF,#A6E1EC);
}
.trangel div:nth-of-type(4){
top: 100px;
left: 0px;
background: -webkit-linear-gradient(bottom, #1E9FFF,#A6E1EC);
-webkit-transform-origin: top;
-webkit-transform: rotateX(-90deg);
}
.trangel div:nth-of-type(5){
top: 0px;
left: 100px;
background: -webkit-linear-gradient(right, #1E9FFF,#A6E1EC);
-webkit-transform-origin: left;
-webkit-transform: rotateY(90deg);
}
.trangel div:nth-of-type(6){
left: 0px;
top: 0px;
background:-webkit-linear-gradient(-360deg, #1E9FFF,#A6E1EC);
-webkit-transform:translateZ(-100px) rotateX(180deg);
}
.wrap:hover .trangel{
-webkit-transform: rotateX(360deg) rotateY(-360deg) rotateZ(360deg);
}
</style>
</head>
<body>
<div class="wrap">
<div class="trangel">
<div>1</div>
<div>2</div>
<div>3</div>
<div>4</div>
<div>5</div>
<div>6</div>
</div>
</div>
</body>
</html>
2. animation
2.1关键帧-keyFrames
-
关键帧的时间单位
- 数字：0%、25%、100%等
- 字符：from(0%)、to(100%)
-
格式
@keyframes 动画名称
{
动画状态
}
- 格式(2)
@keyframes miaov
{
from { background:red; }
to { background:blue; }
}
2.2 animate-调用动画
-
必要属性
- animation-name 动画名称（关键帧名称）
- animation-duration 动画持续时间
- animation-play-state 播放状态（ running 播放 和paused 暂停 ）
-
可选属性
-
animation-timing-function 动画运动形式
- 参数
- linear 匀速
- ease 缓冲
- ease-in 由慢到快
- ease-out 由快到慢
- ease-in-out 由慢到快再到慢
- cubic-bezier(number, number, number, number)： 特定的贝塞尔曲线类型，4个数值需在[0, 1]区间内 -
animation-delay 动画延迟
- 只是第一次
-
animation-iteration-count 重复次数
- infinite为无限次
-
animation-direction 播放前重置
- 动画是否重置后再开始播放
- alternate 动画直接从上一次停止的位置开始执行
- normal 动画第二次直接跳到0%的状态开始执行
-
练习

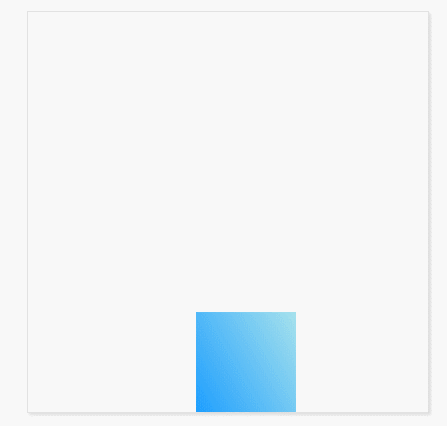

练习1：循环运动
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>循环运动</title>
<style type="text/css">
@-webkit-keyframes domove{
0%{
left: 0px;
top: 0px;
}
25%{
left: 300px;
top: 0px;
}
50%{
left: 300px;
top: 300px;
}
75%{
left: 0;
top: 300px;
}
100%{
left: 0;
top: 0;
}
}
*{
margin: 0;
padding: 0;
}
.wrap{
width: 400px;
height: 400px;
margin: 20px auto;
position: relative;
border: 1px solid #ddd;
box-shadow: 2px 2px 4px #ddd;
}
.trangel{
width: 100px;
height: 100px;
position: absolute;
background:-webkit-linear-gradient(30deg, #1E9FFF,#A6E1EC);
top: 0;
left: 0;
animation: 2s infinite domove;
}
</style>
</head>
<body>
<div class="wrap">
<div class="trangel"></div>
</div>
</body>
</html>

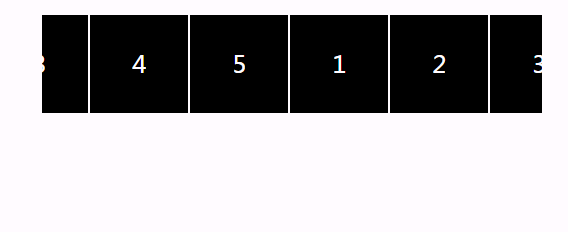

练习2：滚动提示
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>滚动提示</title>
<style type="text/css">
@-webkit-keyframes domove{
0%{
left: 0px;
top: 0px;
}
100%{
left: -500px;
top: 0px;
}
}
*{
margin: 0;
padding: 0;
}
ul li{
list-style: none;
}
.wrap{
width: 500px;
height: 100px;
position: relative;
margin: 20px auto;
background: #000;
}
.wrap ul{
position: absolute;
width: 200%;
height: 100px;
top: 0;
left: 0;
animation: 5s domove linear infinite;
}
.wrap ul li{
width: 98px;
height: 98px;
float: left;
border: 1px solid #fff;
text-align: center;
line-height: 98px;
color: #fff;
font-size: 24px;
}
.wrap ul:hover{
-webkit-animation-play-state: paused;
}
</style>
</head>
<body>
<div class="wrap">
<ul>
<li>1</li>
<li>2</li>
<li>3</li>
<li>4</li>
<li>5</li>
<li>1</li>
<li>2</li>
<li>3</li>
<li>4</li>
<li>5</li>
</ul>
</div>
</body>
</html>

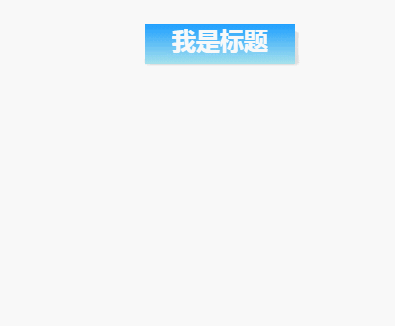

练习3：3D折叠菜单
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>3D折叠菜单</title>
<style type="text/css">
*{
margin: 0;
padding: 0;
}
@-webkit-keyframes open{
0%{
-webkit-transform: rotateX(-120deg);
}
25%{
-webkit-transform: rotateX(30deg);
}
50%{
-webkit-transform: rotateX(-15deg);
}
75%{
-webkit-transform: rotateX(8deg);
}
100%{
-webkit-transform: rotateX(0deg);
}
}
@-webkit-keyframes close{
0%{
-webkit-transform: rotateX(0deg);
}
100%{
-webkit-transform: rotateX(-120deg);
}
}
#wrap{
width: 150px;
margin: 30px auto;
position: relative;
-webkit-perspective: 800px;
}
#wrap h2{
height: 40px;
background: -webkit-linear-gradient(top,#1E9FFF,#A6E1EC);
color: #fff;
text-align: center;
position: relative;
z-index: 10;
}
#wrap div{
position: absolute;
width: 100%;
top: 32px;
left: 0;
-webkit-transform-style: preserve-3d;
-webkit-transform-origin:top;
-webkit-transform: rotateX(-120deg);
z-index: 1;
}
#wrap span{
display: block;
height: 30px;
background: -webkit-linear-gradient(top,#1E9FFF,#A6E1EC);
color: #fff;
box-shadow: 2px 2px 4px #ddd;
transition: 1s ;
}
#wrap>div{
top: 40px;
}
#wrap .show{
-webkit-animation: 1.2s open;
-webkit-transform: rotateX(0deg);
}
#wrap .hide{
-webkit-animation: 1s close;
-webkit-transform: rotateX(-120deg);
}
</style>
</head>
<body>
<div id="wrap">
<h2>我是标题</h2>
<div>
<span>选项1</span>
<div>
<span>选项2</span>
<div>
<span>选项3</span>
<div>
<span>选项4</span>
<div>
<span>选项5</span>
<div>
<span>选项6</span>
<div>
<span>选项7</span>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
<script type="text/javascript">
var oWrap = document.getElementById("wrap");
var oDiv = oWrap.getElementsByTagName('div');
var onOff = true;
var oTimer = null;
var i = 0;
oWrap.onclick = function(){
if(oTimer){
return
}
if(onOff){
i = 0
oTimer = setInterval(function(){
oDiv[i].className = "show";
i++;
if(i==oDiv.length){
clearInterval(oTimer);
oTimer = null;
onOff = false;
}
},200);
}else {
i = oDiv.length-1;
oTimer = setInterval(function(){
oDiv[i].className = "hide";
i--;
if(i<0){
clearInterval(oTimer);
oTimer = null;
onOff = true;
}
},200);
};
}
</script>
</body>
</html>
练习4：涟漪效果
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>涟漪</title>
<style>
*{
margin: 0;
padding: 0;
}
@keyframes changes{
0%{
height: 0px;
width: 0px;
opacity: 1;
}
100%{
height: 100px;
width: 100px;
opacity: 0;
}
}
.wrap{
width: 100px;
height: 100px;
border: 1px solid #ddd;
box-shadow: 2px 2px 4px #ddd;
margin: 20px auto;
position: relative;
}
.circle{
position: absolute;
top: 0;
left: 0;
right: 0;
bottom: 0;
width: 10px;
height: 10px;
margin: auto;
border-radius: 50%;
background: #1E9FFF;
animation: changes 2s linear infinite;
}
.circle:nth-child(1){
animation-delay: 1s;
}
.circle:nth-child(2){
animation-delay: 1.5s;
}
.circle:nth-child(3){
animation-delay: 2s;
}
</style>
</head>
<body>
<div class="wrap">
<div class="circle">
</div>
<div class="circle">
</div>
<div class="circle">
</div>
<div class="circle">
</div>
</div>
</body>
</html>
