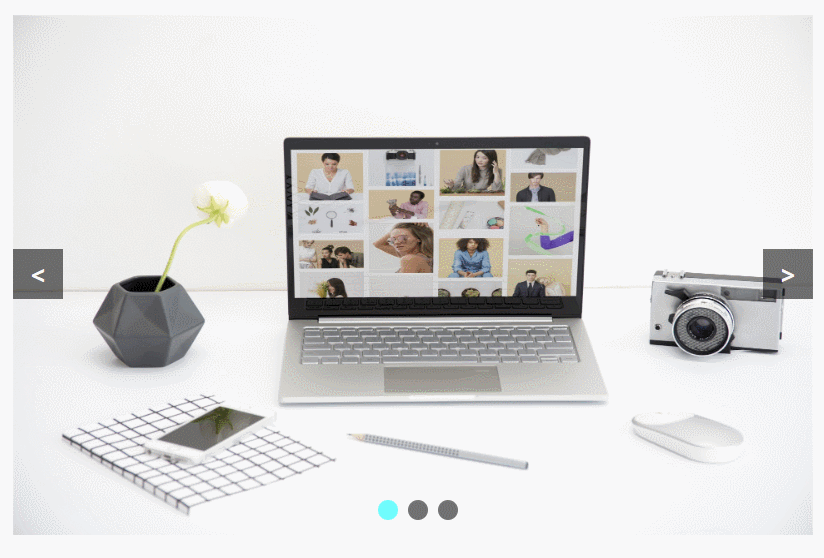

效果

代码

css 样式

* {
            margin: 0;
            padding: 0;
        }
        .main {
            width: 800px;
            margin: 20px auto;
        }
        ul li {
            list-style: none;
            cursor: pointer;
        }
        .pic {
            width: 100%;
            position: relative;
            height: 520px;
        }
        .pic img {
            width: 100%;
            height: 520px;
        }
        .pic .indicators {
            position: absolute;
            bottom: 10px;
            left: 45%;
        }
        .pic .indicators li {
            width: 20px;
            height: 20px;
            background: rgba(0,0,0,0.55);
            border-radius: 50%;
            float: left;
            margin: 5px;
            cursor: pointer;
        }
        .pic .swiper {
            width: 100%;
            height: 100%;
            overflow: hidden;
        }


        .pic ul li.active {
            background: rgba(0,255,255,0.55);
        }
        a.btn {
            width: 50px;
            height: 50px;
            line-height: 50px;
            background: rgba(0,0,0,0.55);
            color: #fff;
            position: absolute;
            text-align: center;
            text-decoration: none;
            font-size: 24px;
            font-weight: 600;
            top: 45%;
        }
        a.next {
            right: 0;
        }

html 结构

<div class="main">
        <div class="pic">
            <!-- 图-->
            <div class="swiper">
                <img src="" id="swiper">
            </div>

            <!--点-->
            <ul class="indicators" id="indicators">

            </ul>

            <!-- 切换按钮-->
            <a href="javascript:;" class="btn next" onclick="next()"> > </a>
            <a href="javascript:;" class="btn prev" onclick="prev()"> < </a>
        </div>
    </div>

JavaScript

var images = ['https://www.tanshangbiao.cn/project/images/bg.jpg','https://www.tanshangbiao.cn/project/images/bg-1.jpg','https://www.tanshangbiao.cn/project/images/bg-2.jpg'];

        var num = 0;
        var oSwiper = document.getElementById('swiper');
        var oIndicators = document.getElementById('indicators');

        /** 初始化 */
        function swiperInit() {
            oSwiper.src = images[num];

            for (let i=0; i<images.length; i++) {
                let oLi = document.createElement('li');
                oLi.addEventListener('click', clickInd);
                oIndicators.appendChild(oLi);
            };
            oIndicators.getElementsByTagName('li')[num].className = 'active';
        };
        swiperInit();

        /** 下一张*/
        function next() {
            num ++ ;
            if (num > images.length - 1) {
                num = 0 ;
            };
            oSwiper.src = images[num];

            ind();
        };

        /** 上一张 */
        function prev() {
            num -- ;
            if (num < 0) {
                num = images.length - 1;
            };
            oSwiper.src = images[num];

            ind();
        };

        /** 切点 */
        function ind() {
            let oIndItem = oIndicators.getElementsByTagName('li');

            for (let i = 0; i<oIndItem.length; i++) {
                oIndItem[i].className = '';
            };

            oIndItem[num].className = 'active';
        };

        function clickInd() {
            let oIndItem = oIndicators.getElementsByTagName('li');

            for (let i=0; i<oIndItem.length; i++) {
                oIndItem[i].onclick = () => {
                    num = i;
                    ind();
                    oSwiper.src = images[i];
                }
            }
        }
